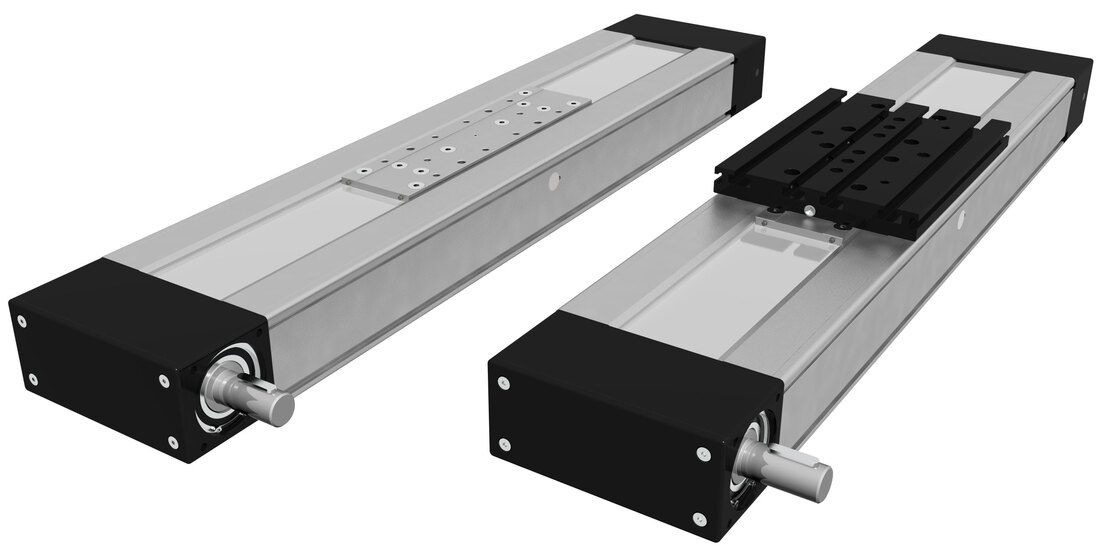

Linear Unit CTJ 200

The CTJ series includes linear units with a toothed belt drive and two parallel, integrated, zero-backlash rail guides. In the linear units CTJ is used a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

The in the profile slot driving timing belt, protects all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.

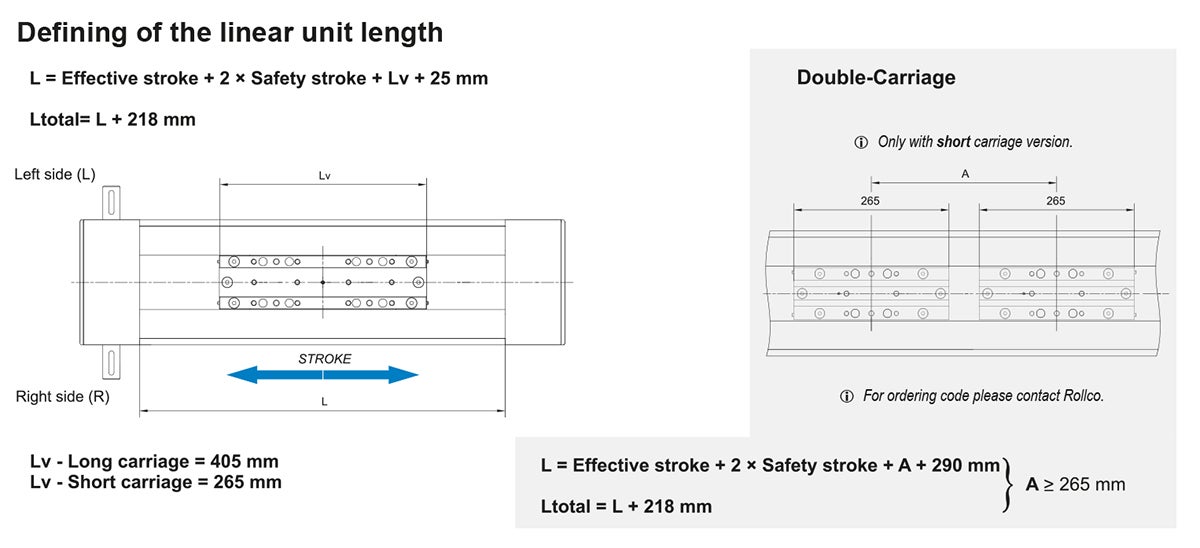

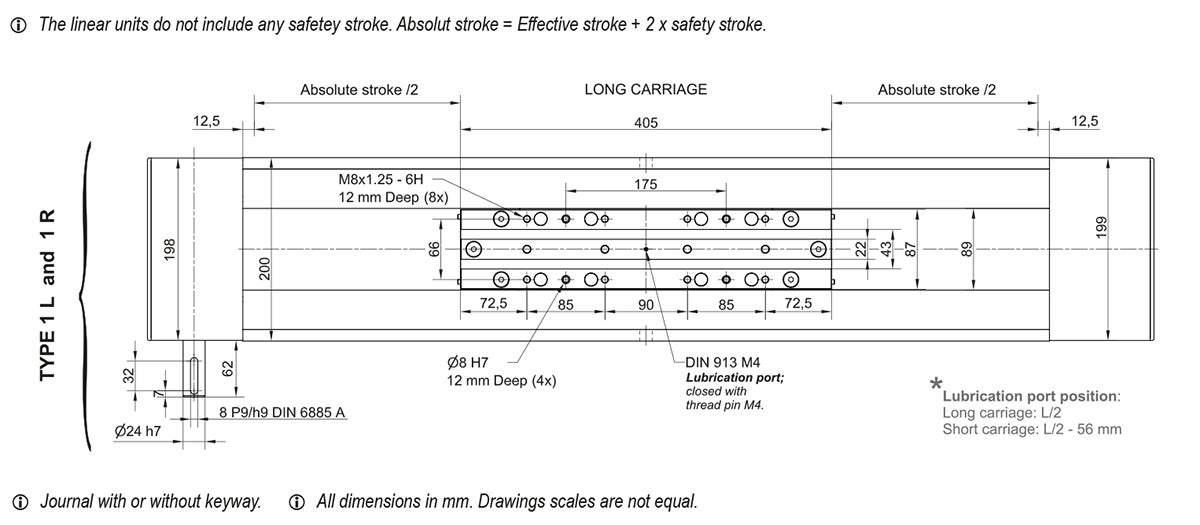

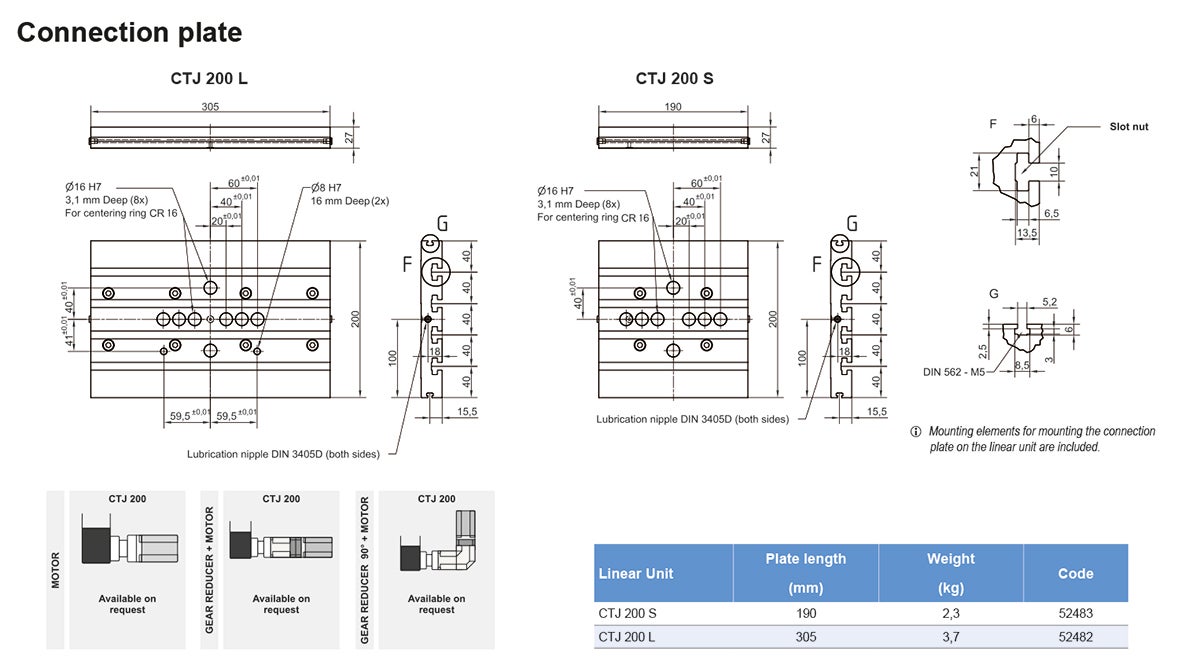

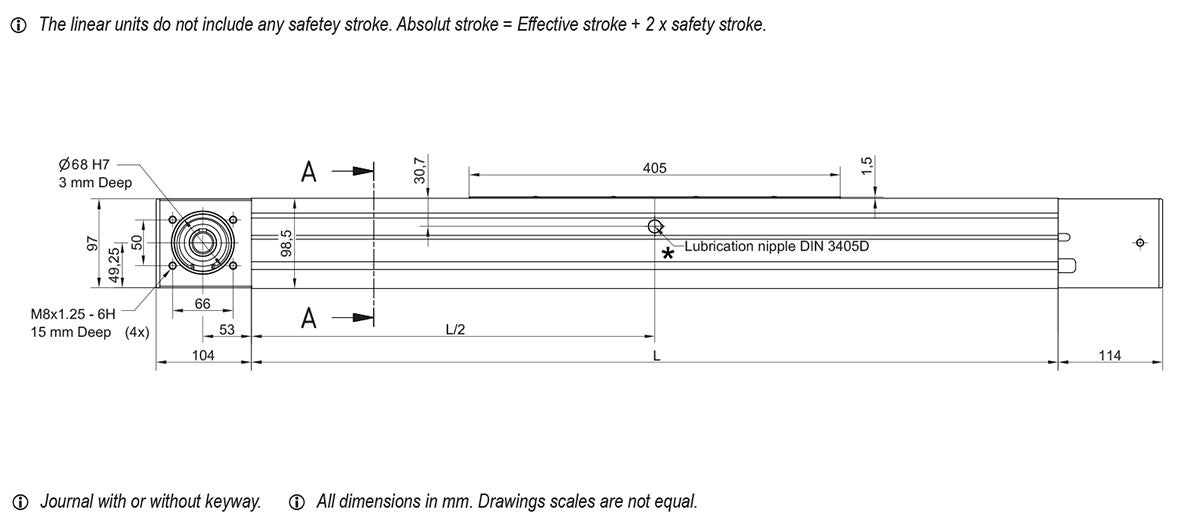

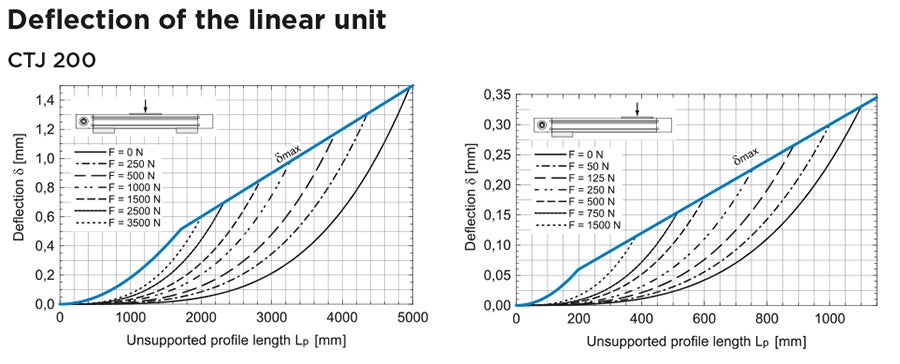

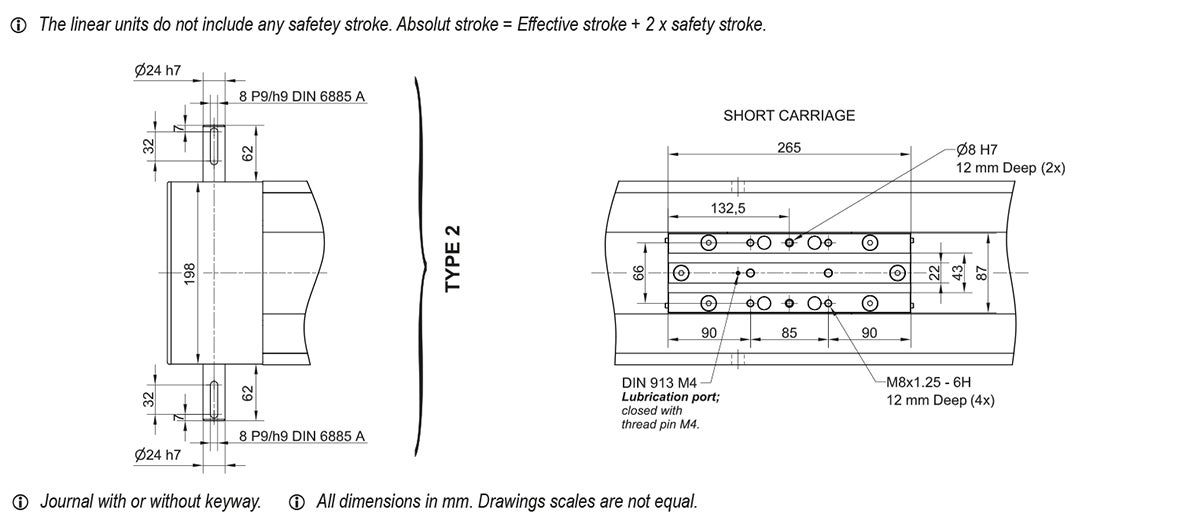

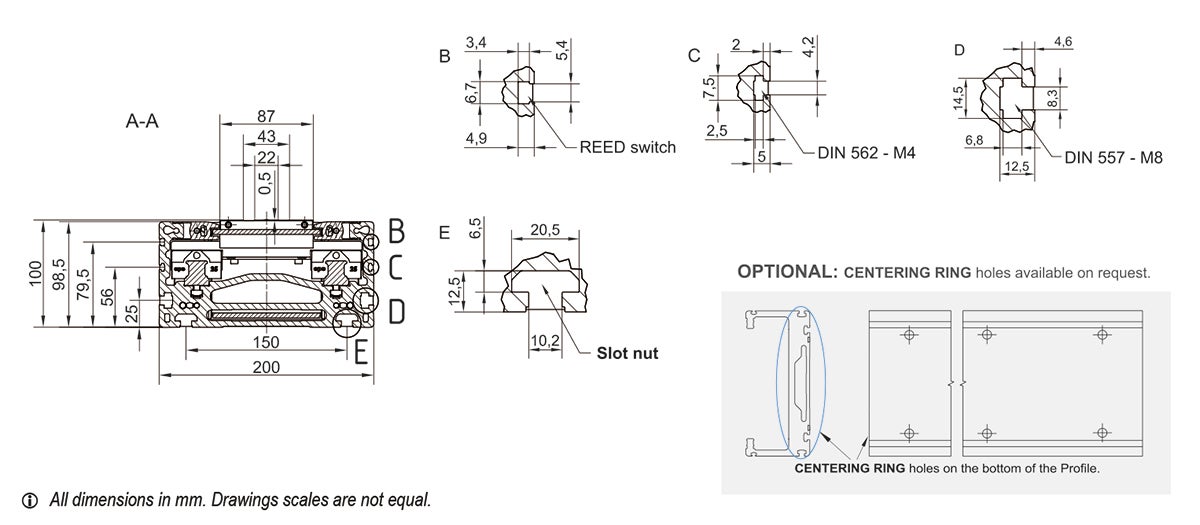

Dimensions in mm.
Read more

Product Information

Modulus of Elasticity: E = 70000 N / mm2
Operating Temperature (°C): 0 ~ +60 For operating temperature out of the presented range, please contact Rollco.
Duty Cycle: 100%
Max. Acceleration (m/s²): 70
Max. Travel Speed (m/s): 6
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Carriage Length Lv (mm) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm) Moved Mass (kg) Max. Repeatability (mm) Max. Length Lmax (mm) Max. Stroke (mm) Min. Stroke (mm)
Get quote 2 265 3235 450 900 49600 85000 10000 24520 1600 450 308 3.05 ± 0.08 6000 5710 65
Get quote 2 405 6470 8680 8680 99200 170000 20000 50900 3250 4550 1750 5.7 ± 0.08 6000 5570 65

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Carriage version Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Dynamic Moment Mx (Nm) Dynamic Moment My (Nm) Dynamic Moment Mz (Nm) Max. Permissible Loads Forces Fpy (N) Max. Permissible Loads Forces Fpz (N) Max. Permissible Loads Moments Mpx (Nm) Max. Permissible Loads Moments Mpy (Nm) Max. Permissible Loads Moments Mpz (Nm)
Get quote S2 99200 170000 6470 49.6 × A (mm) 49.6 × A (mm) 20000 49040 3200 24.5 × A (mm) 10.0 × A (mm)
Get quote S2 99200 170000 6470 49.6 × A (mm) 49.6 × A (mm) 20000 49040 3200 24.5 × A (mm) 10.0 × A (mm)
Designation Select all CAD Compare Get quote Max. Travel Speed (m/s) No Load Torque (Nm) Pulley Drive Ratio (mm/rev) Pulley Diameter Belt Type Belt Width Max. Force Transmitted by Belt (N) Specific Spring Constant Cspec (N) Max. Drive Torque (Nm) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴)
Get quote 6 3.5 × nc 250 79.58 AT 10 100 3250 4350000 102 376.4 2744.6
Get quote 6 4.5 × nc 250 79.58 AT 10 100 3250 4350000 129 376.4 2744.6
Designation Select all CAD Compare Get quote Mass of Linear Unit (kg) Mass Moment of Inertia (10⁻⁵ kg m²) Planar Moment of Inertia ly (cm⁴) Planar Moment of Inertia lz (cm⁴) Moved Mass (kg) No Load Torque (Nm)
Get quote 20.2 + 0.0245 × (Abs. Stroke + (nc - 1) × A) + 3.1 × (nc - 1) 778 + 0.1868 × (Abs. Stroke + (nc - 1) × A) + 482.9 × (nc - 1) 376.4 2744.6 3.05 3.5 × nc
Get quote 26.2 + 0.0245 × (Abs. Stroke + (nc - 1) × A) + 5.7 × (nc - 1) 1210 + 0.1868 × (Abs. Stroke + (nc - 1) × A) + 902.4 × (nc - 1) 376.4 2744.6 5.7 4.5 × nc
