XSTR---.6200

• Axial roller with 35% higher load capacity.
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Special dimensions on request

Use profile XUP---.0700

Order example: XSTR080.6200

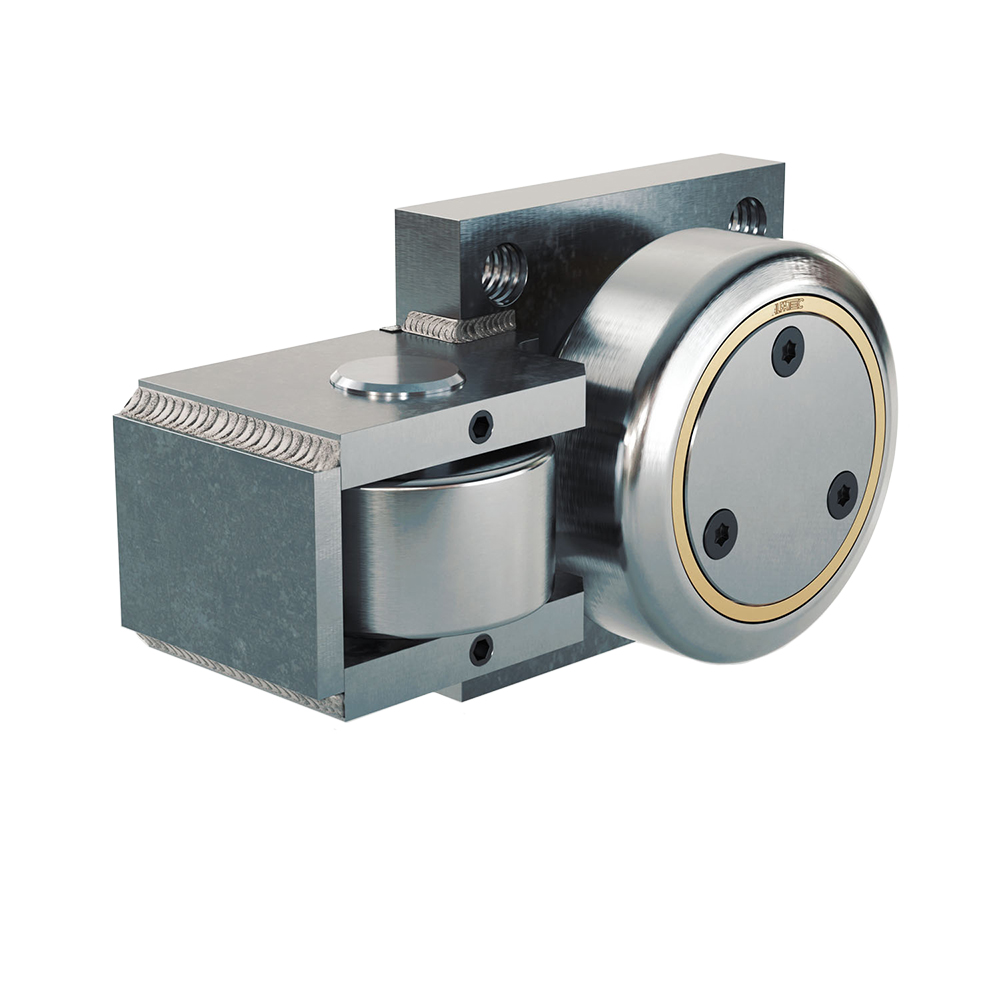

Heavy roller XSTR080.6200

Dimensions in mm.
Read more

Product Information

Roller Type: Heavy
Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile
Get quote 2 15390 9000 XUP---.0700
Get quote 2 16430 14000 XUP---.0700
Get quote 2 18210 14000 XUP---.0700
Get quote 2 31680 17000 XUP---.0700
Get quote 2 34850 27000 XUP---.0700
Get quote 2 47430 27000 XUP---.0700
Get quote 2 82190 27000 XUP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote A B C D E F G H I J K M N O P R
Get quote 38 20 70 50 10 50 70 41.5 12 35 55 118 42.5 Ø 40 4 x M10 Ø 65.5
Get quote 42 24 80 60 10 60 80 49 15 40 65 137 51 Ø 47 4 x M12 Ø 73.8
Get quote 46 24 100 70 15 70 100 48.5 15 50 75 157 51.5 Ø 47 4 x M12 Ø 81.7
Get quote 46 24 120 90 15 90 120 61 20 60 85 183 64 Ø 52 4 x M16 Ø 92.4
Get quote 54 28 140 100 20 100 140 71.5 20 70 105 223 75 Ø 72 4 x M16 Ø 111.4
Get quote 54 28 140 100 20 100 140 71.5 20 70 107 225 76 Ø 72 4 x M16 Ø 126.8
Get quote 54 28 160 120 20 120 160 79 25 80 80 248 83.5 Ø 72 4 x M16 Ø 153.1
