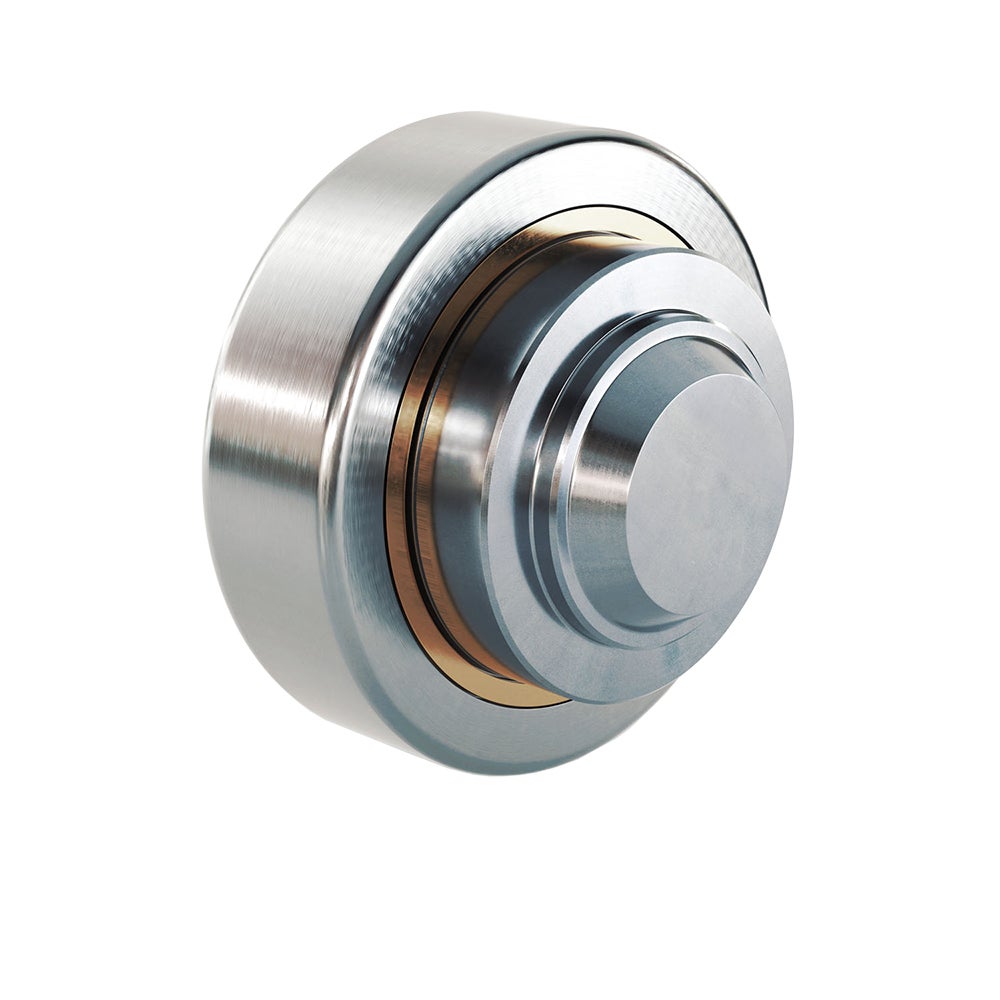

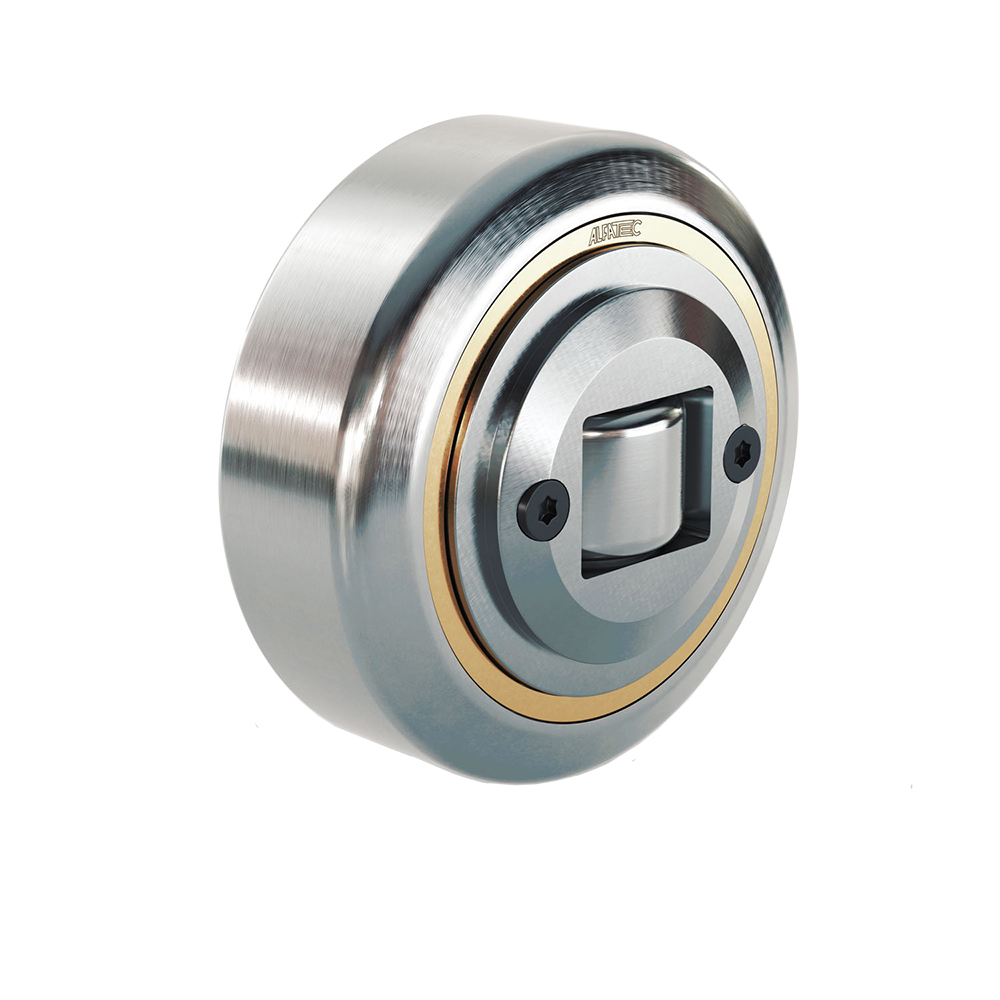

XTR---.0300

• Combined – adjustable with insert washer
• Extra sustainable
• Extra exact
• Extra strong
• Extra long-lasting
• Adjustment of dimension A by using a shim

Use profile XUP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! System Load Capacity refers to capacity of both rail and bearing. Dynamic Load Capacity refers to bearing.

Dimensions in mm.
Read more

Product Information

Roller Type: Heavy
Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Dynamic Load Capacity Axial (N) Dynamic Load Capacity Radial (N) Profile
Get quote 2 15390 3800 8000 31000 XUP---.0700
Get quote 2 16430 4100 13000 45500 XUP---.0700
Get quote 2 18210 6500 14000 48000 XUP---.0700
Get quote 2 31680 6600 15000 68000 XUP---.0700
Get quote 2 34850 11500 31000 81000 XUP---.0700
Get quote 2 47430 12700 31000 110000 XUP---.0700
Get quote 2 82190 22600 68000 151000 XUP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote A B D H L T U
Get quote 5.5 20 65.5 43 33 42 30
Get quote 6.5 23 73.8 48 40 48 35
Get quote 7 23 81.7 50.5 39.5 54 40
Get quote 7 30 92.4 61 48 59 45
Get quote 8 31 111.4 69 55 71 60
Get quote 8 37 126.8 75.8 59.5 80 60
Get quote 15 45 153.1 89 69 103 60
