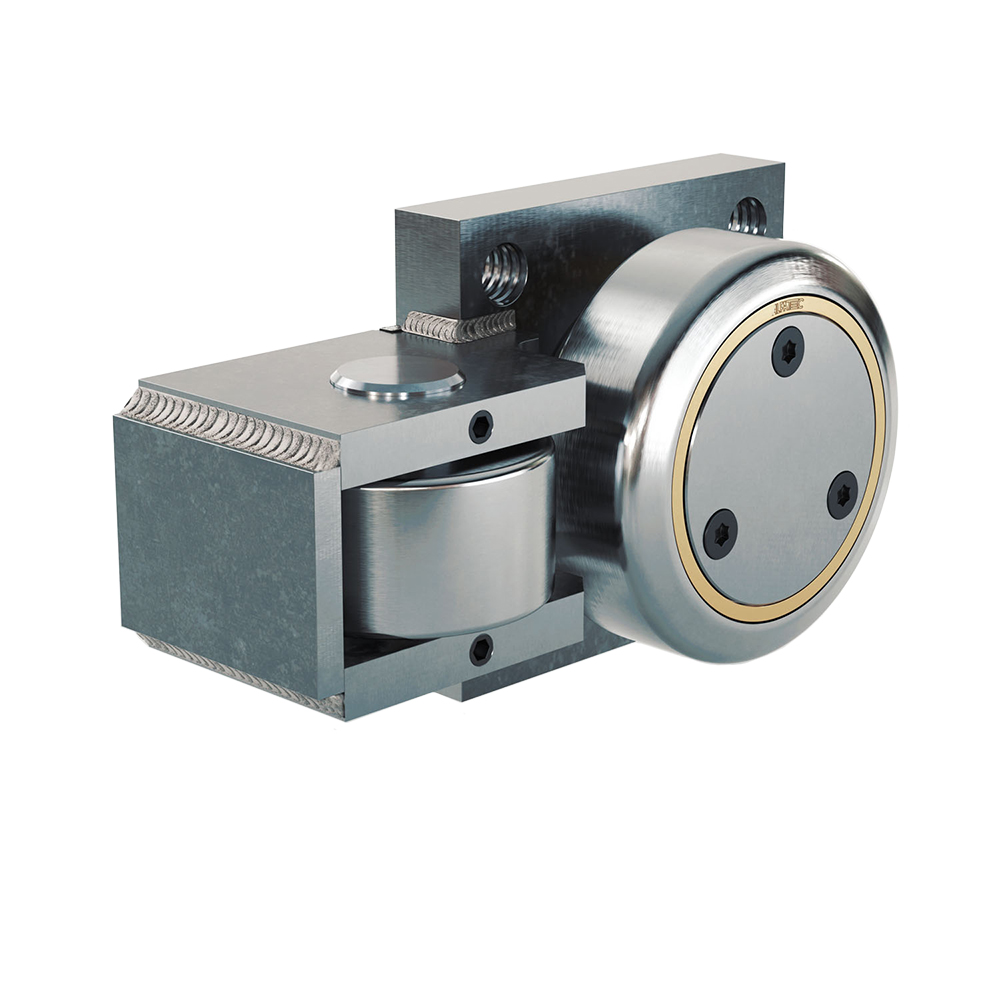

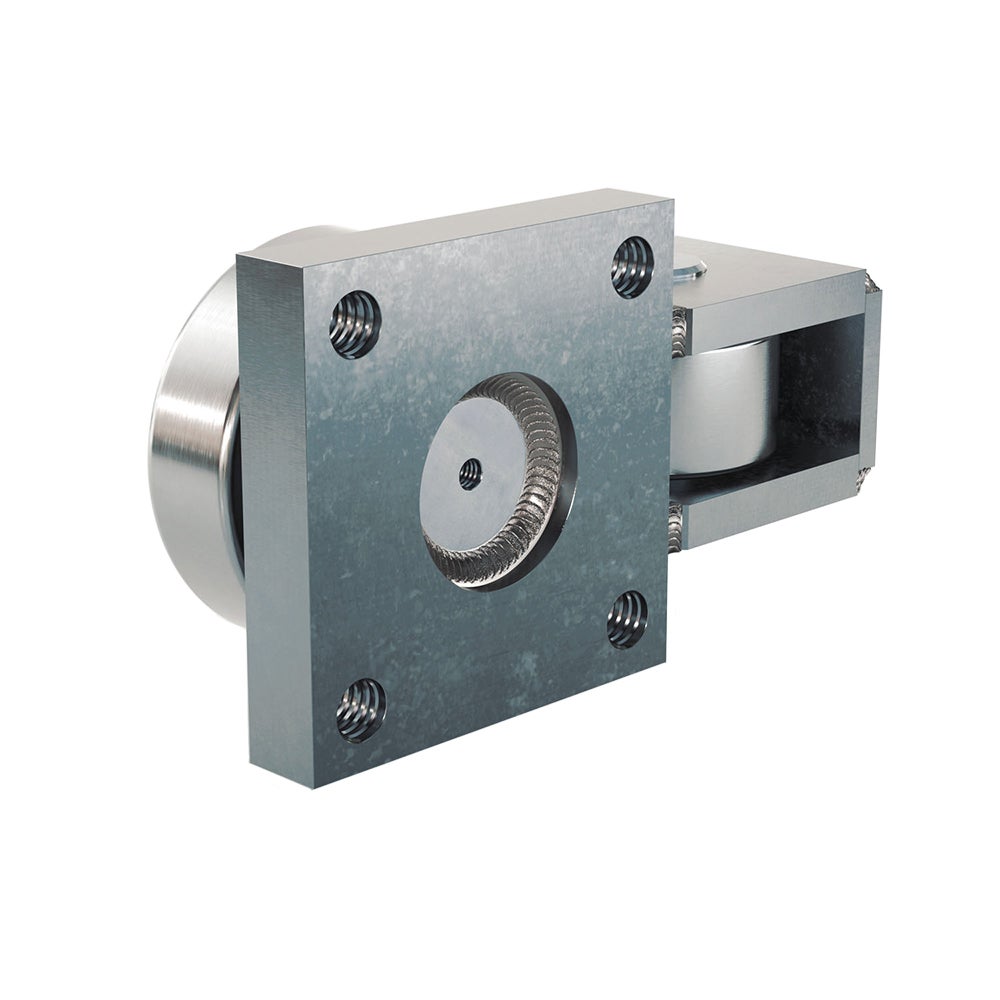

STR---.6200

• This roller with axial bearing gives 40% higher load capacity
• Lubricated for lifetime
• Special dimensions on request

Use profile UP---.0700

Order example: STR 080.6200
Standard roller STR 080.6200

Dimensions in mm.
Read more

Product Information

Roller Type: Standard
Sizes Available: 60; 70; 80; 90; 110; 120; 150
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all Compare Get quote Lead Time * System Load Capacity Radial (N) System Load Capacity Axial (N) Profile
Get quote 2 8870 7000 UP---.0700
Get quote 2 11400 11000 UP---.0700
Get quote 2 12870 11000 UP---.0700
Get quote 2 20370 13000 UP---.0700
Get quote 2 24060 20000 UP---.0700
Get quote 2 33440 20000 UP---.0700
Get quote 2 51940 20000 UP---.0700

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote A B C D E F G H I J K M N O P R
Get quote 38 20 70 50 10 50 70 41.5 12 35 55 118 42.5 Ø 40 4 x M10 Ø 62.5
Get quote 42 24 80 60 10 60 80 49 15 40 65 137 51 Ø 47 4 x M12 Ø 70.1
Get quote 46 24 100 70 15 70 100 48.5 15 50 75 157 51.5 Ø 47 4 x M12 Ø 77.7
Get quote 46 24 120 90 15 90 120 61 20 60 85 183 64 Ø 52 4 x M16 Ø 88.4
Get quote 54 28 140 100 20 100 140 71.5 20 70 105 223 75 Ø 72 4 x M16 Ø 107.1
Get quote 58 28 140 100 20 100 140 71.5 20 70 107 225 76 Ø 72 4 x M16 Ø 123
Get quote 54 28 160 120 20 120 160 79 25 80 120 248 83.5 Ø 72 4 x M16 Ø 149
  • STOCK ITEM

    UP---.0700
    Standard U-Profile, good weldability and available in various surfaces

  • IP---.0800
    I-Profile, good weldability and available in various surfaces

  • PAS ---.0360
    Roller combined fixed with oilamide sliding block for profile UP---.0730

  • PAS ---.0200
    Polyamide roller combined fixed, for profile UP---.0730

  • PSAS ---.6200
    Polyamide roller combined fixed axial, for profile UP---.0730

  • TR---.0200
    Standard Roller Fixed, for profile UP---.0700/0730

  • TR---.0300
    Standard Roller, adj. of the axial clearance, for profile UP---.0700

  • TR---.0360
    Standard Roller with Oilamide Sliding Block, for profile UP---.0700

  • XTR---.0200
    Heavy Roller Fixed, up to 60% higher load capacity, for profile XUP---.0700

  • XTR---.0300
    Heavy Roller combined adjustable w. insert washer, for profile XUP---.0700

  • TR---.0390
    Stainless Roller combined, fixed with oilamide sliding block, for profile UP---.0780

  • XSTR---.6200
    Heavy Roller axis, extra sustainable, for profile XUP---.0700
