C-RAIL

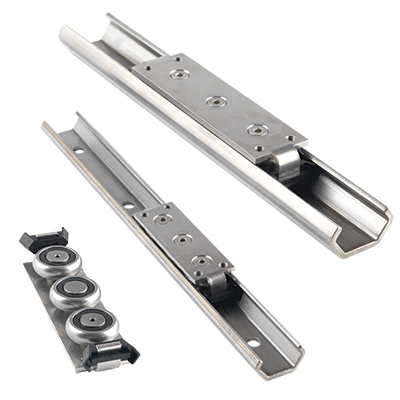

Compact and quiet linear guide with low friction. The rails are available in lengths up to 6 m and the sliders have three rollers in the internal raceways. The rollers have double rubber seals and are completely maintenance-free. This system is suitable for applications in dusty environments where precision is not the main factor.
C-Rail is available in zinc plated or in stainless steel AISI304 version. The stainless steel version is ideal for applications where water, temperature fluctuations or high temperatures occur.
- Max. temperature: 100°C (212 F)
- Speed: 1.5 m/s.

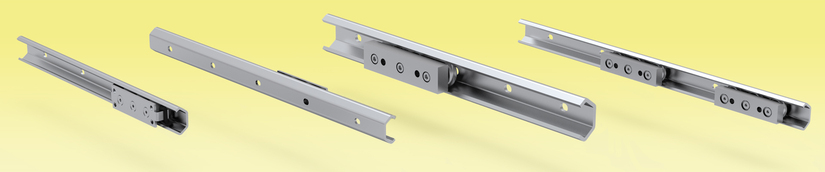

The system is available in three different sizes, 20, 30 and 45 rail.
READ MORE ABOUT LINEAR GUIDES ON OUR BLOG
FURTHER INFORMATION
CHARACTERISTICS
- Corrosion resistant even after scratching, etching and chipping
- Can be used in washdowns
- Resistant to high temperatures and temperature changes
- No coatings that could flake or chip
- Low coefficient of friction
- Ecological and recyclable materials.
APPLICATION AREAS
- Food industry: production and packing of food/beverages
- Chemical and environment industry: water treatment devices
- Medical industry: analysis equipment
- Transport industry: sliding doors and boat constructions
- Power industry: boilers and house fireplaces
- Mechanical devices: car wash and automatic gates
- Machine tools: protective panel movement
