SP7100N – Profile Closed 40x40 3N
System 40 - Slot 8 profile, 1 closed side

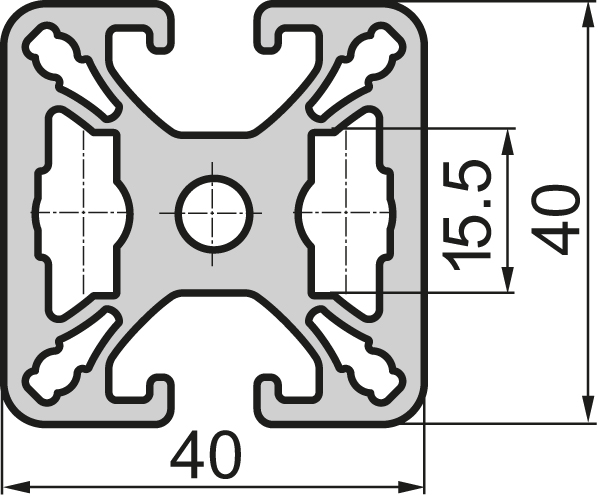

SP6400N – Profile Closed 40x40 2N 180°
Product Information
System: 40 - Slot 8
Dimensions: 40x40
Length (mm): 6000
Material Quality: Strong
Profile Type: Closed
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | System | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 10.69 | 13.24 | 5.35 | 6.62 | 8.11 | 2.20 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
