Rollers CRPN-CRPA
Crowned roller for K-rail

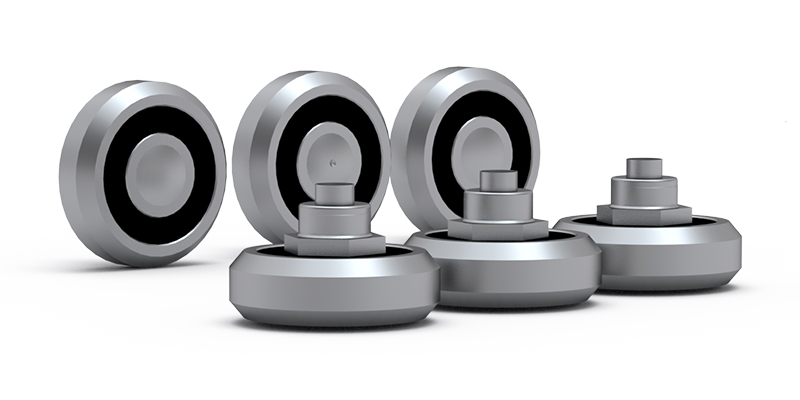

Rollers CPN-CPA
Available individually in all sizes as eccentric or concentric rollers. Prismatic roller for T- and U-rail.
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life
Dimensions in mm.
Read more
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life
Dimensions in mm.
Product Information
Material: Steel 100Cr6. Also available in stainless steel AISI 440.
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Size | Roller type | Material | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 18 | Concentric | Steel | ||||
|
|
|
2 | 18 | Concentric | Stainless steel | ||||
|
|
|
1 | 18 | Concentric | Steel | ||||
|
|
|
1 | 18 | Eccentric | Steel | ||||
|
|
|
2 | 18 | Eccentric | Stainless steel | ||||
|
|
|
1 | 18 | Eccentric | Steel | ||||
|
|
|
1 | 28 | Concentric | Steel | ||||
|
|
|
2 | 28 | Concentric | Stainless steel | ||||
|
|
|
1 | 28 | Concentric | Steel | ||||
|
|
|
1 | 28 | Eccentric | Steel | ||||
|
|
|
2 | 28 | Eccentric | Stainless steel | ||||
|
|
|
1 | 28 | Eccentric | Steel | ||||
|
|
|
1 | 43 | Concentric | Steel | ||||
|
|
|
2 | 43 | Concentric | Stainless steel | ||||
|
|
|
1 | 43 | Concentric | Steel | ||||
|
|
|
1 | 43 | Eccentric | Steel | ||||
|
|
|
2 | 43 | Eccentric | Stainless steel | ||||
|
|
|
1 | 43 | Eccentric | Steel | ||||
|
|
|
1 | 63 | Concentric | Steel | ||||
|
|
|
2 | 63 | Concentric | Stainless steel | ||||
|
|
|
1 | 63 | Eccentric | Steel | ||||
|
|
|
2 | 63 | Eccentric | Stainless steel |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

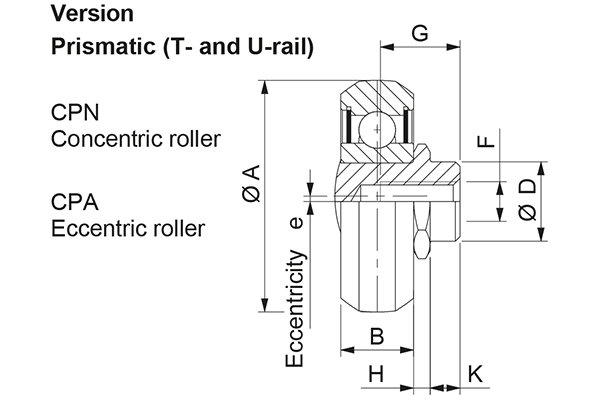

| Designation | Select all | CAD | Compare | Get quote | A | B | D | e | H | G | F | K | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
14 | 4 | 6 | - | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
14 | 4 | 6 | - | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
14 | 4 | 6 | - | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
14 | 4 | 6 | 0.4 | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
14 | 4 | 6 | 0.4 | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
14 | 4 | 6 | 0.4 | 1.55 | 5.5 | M4 | 1.8 | ||||
|
|
|
23.2 | 7 | 10 | - | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
23.2 | 7 | 10 | - | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
23.2 | 7 | 10 | - | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
23.2 | 7 | 10 | 0.6 | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
23.2 | 7 | 10 | 0.6 | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
23.2 | 7 | 10 | 0.6 | 2.2 | 7 | M5 | 3.8 | ||||
|
|
|
35 | 11 | 12 | - | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35 | 11 | 12 | - | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35 | 11 | 12 | - | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35 | 11 | 12 | 0.8 | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35 | 11 | 12 | 0.8 | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
35 | 11 | 12 | 0.8 | 2.5 | 12 | M6 | 4.5 | ||||
|
|
|
50 | 17.5 | 18 | - | 2.3 | 16 | M8 | 6 | ||||
|
|
|
50 | 17.5 | 18 | - | 2.3 | 16 | M8 | 6 | ||||
|
|
|
50 | 17.5 | 18 | 1.2 | 2.3 | 16 | M10 | 6 | ||||
|
|
|
50 | 17.5 | 18 | 1.2 | 2.3 | 16 | M10 | 6 |
| Designation | Select all | CAD | Compare | Get quote | C (N) | C0rad (N) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
765 | 410 | 0.004 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
2130 | 1085 | 0.019 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
6140 | 2750 | 0.06 | ||||
|
|
|
15375 | 6250 | 0.19 | ||||
|
|
|
15375 | 6250 | 0.19 | ||||
|
|
|
15375 | 6250 | 0.19 | ||||
|
|
|
15375 | 6250 | 0.19 |

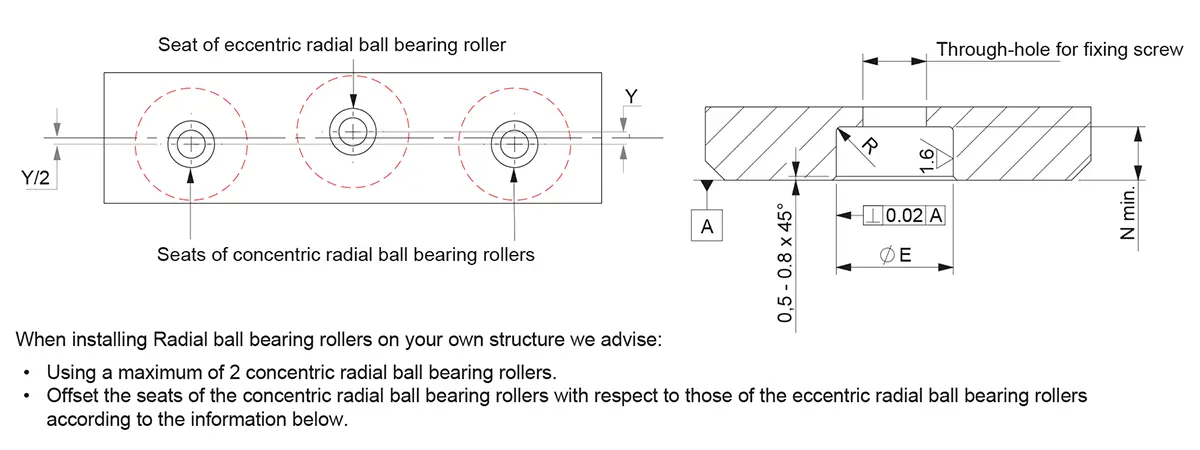

| Designation | Select all | CAD | Compare | Get quote | Y | E | N min. | Radius R | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.30 | 6 + 0.025/+0.01 | 2.1 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.64 | 10 + 0.03/+0.01 | 4.0 | 0.5 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.72 | 12 + 0.05/+0.02 | 5.5 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 | ||||
|
|
|
0.55 | 18 + 0.02/-0.02 | 7 | 1 |
