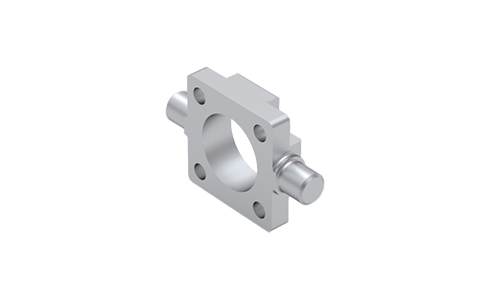

ZK

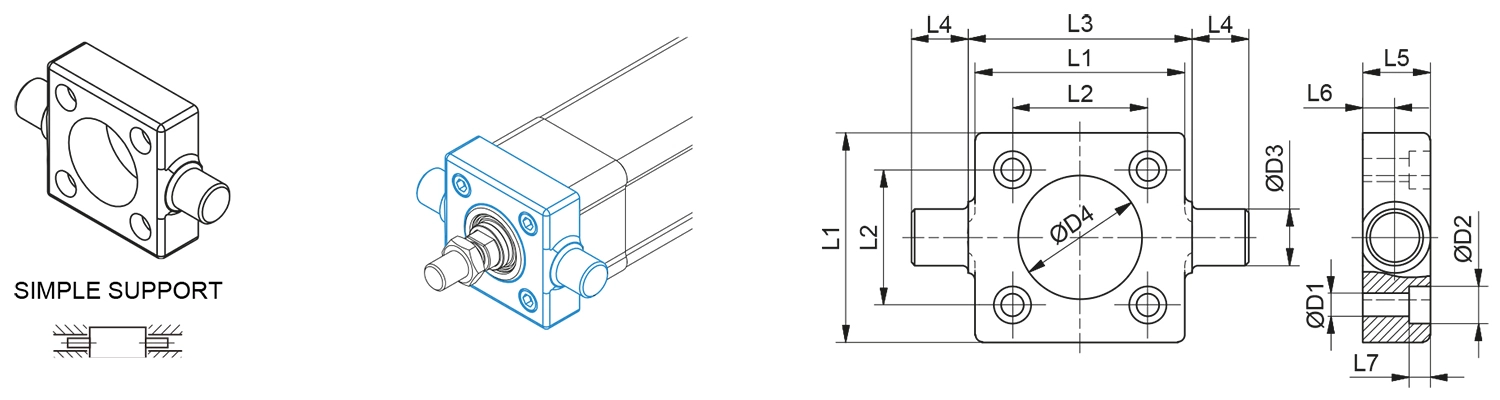

Dimensions in mm.

Product Information

Material: Galvanized steel
Select columns
CAD Compare Get quote
Get quote 2 ZK 32 PNCE 32 F PNCE 0.17
Get quote 2 ZK 40 PNCE 40 F PNCE 0.43
Get quote 2 ZK 50 PNCE 50 F PNCE 0.58
Get quote 2 ZK 63 PNCE 63 F PNCE 1.12
Get quote 2 ZK 80 PNCE 80 F PNCE 1.57
Get quote 2 ZK 100 PNCE 100 F PNCE 2.93

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Select columns
CAD Compare Get quote
Get quote 46 32.5 50 (h14) 12 (h14) 14 6.5 (+0.2 / 0) 6 (+0.5 / 0) Ø 6.5 Ø 10.5 Ø 12 (e9) Ø 30 (H11)
Get quote 59 38 63 (h14) 16 (h14) 19 9 (+0.2 / 0) 6 (+0.5 / 0) Ø 6.5 Ø 10.5 Ø 16 (e9 Ø 35 (H11)
Get quote 69 46.5 75 (h14) 16 (h14) 19 9 (+0.2 / 0) 8 (+0.5 / 0) Ø 8.5 Ø 13.5 Ø 16 (e9 Ø 40 (H11)
Get quote 84 56.5 90 (h14) 20 (h14) 24 11.5 (+0.2 / 0) 8 (+0.5 / 0) Ø 8.5 Ø 13.5 Ø 20 (e9 Ø 45 (H11)
Get quote 102 72 110 (h14) 20 (h14) 24 11.5 (+0.2 / 0) 10 (+0.5 / 0) Ø 10.5 Ø 16.5 Ø 20 (e9 Ø 60 (H11)
Get quote 125 89 132 (h14) 25 (h14) 29 14 (+0.2 / 0) 10 (+0.5 / 0) Ø 10.5 Ø 16.5 Ø 25 (e9 Ø 70 (H11)

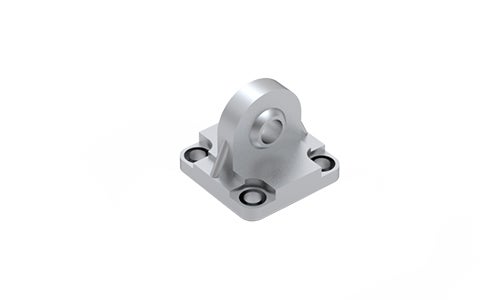

  • SSG

    Mounting attachment accessory SSG, aluminium or stainless steel AISI 316

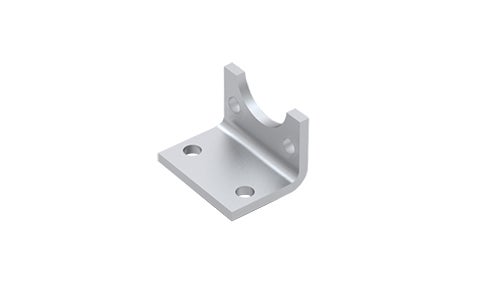

  • HG

    Mounting attachment accessory HG, galvanized or stainless steel AISI 304

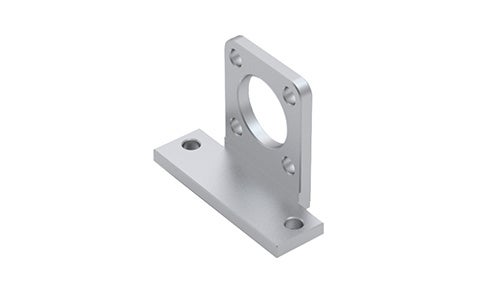

  • HGLL

    Mounting attachment accessory HGLL, galvanized steel

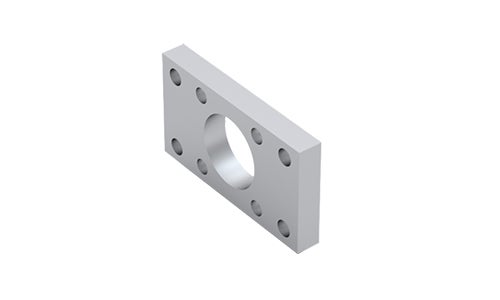

  • FG

    Mounting attachment accessory FG, galvanized or stainless steel AISI 304

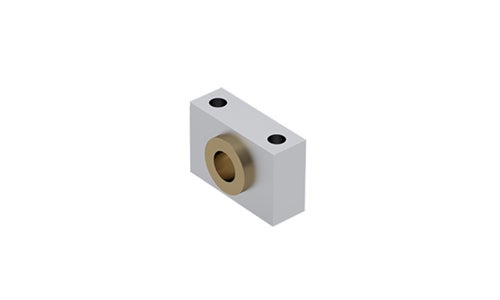

  • LZ

    Mounting attachment accessory LZ, galvanized steel

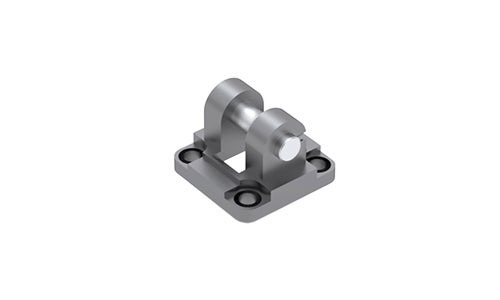

  • SGN

    Mounting attachment accessory SGN, aluminium or stainless steel AISI 316

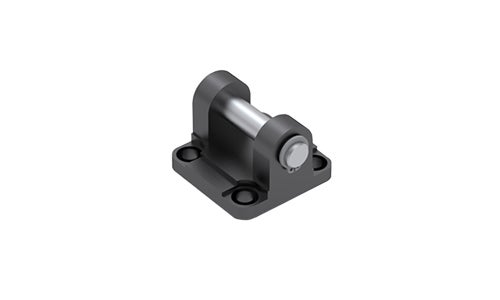

  • SBG

    Mounting attachment accessory SBG, aluminium or stainless steel AISI 304

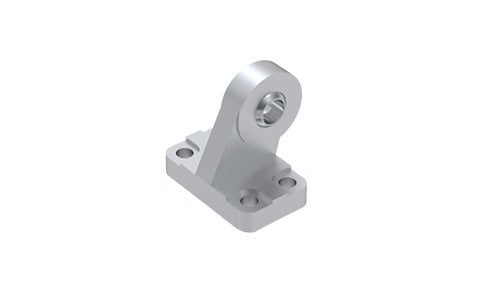

  • LSG

    Mounting attachment accessory LSG, steel (black cataphoresis) or stainless steel AISI 316

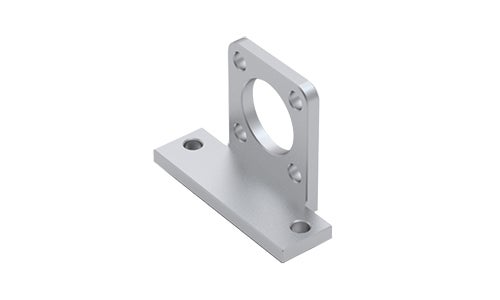

  • HGL

    Mounting attachment accessory HGL, galvanized steel

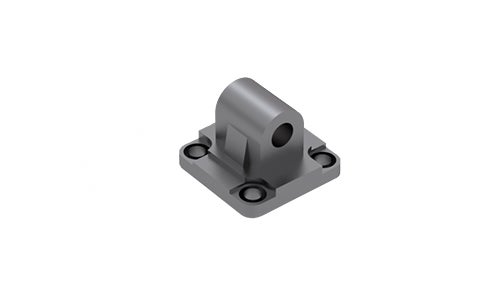

  • SGL

    Mounting attachment accessory SGL, Aluminium or stainless steel AISI 304

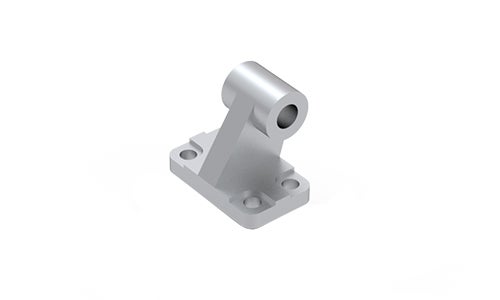

  • LG

    Mounting attachment accessory LG, aluminium or stainless steel AISI 304

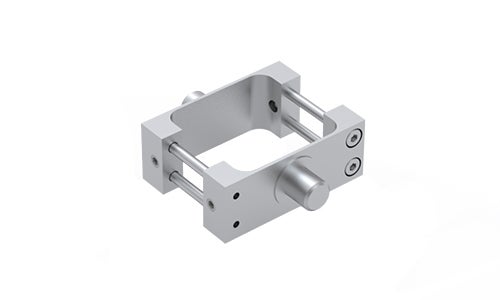

  • ZKCE
