SBI HLL / SBI CLL

STOCK ITEM

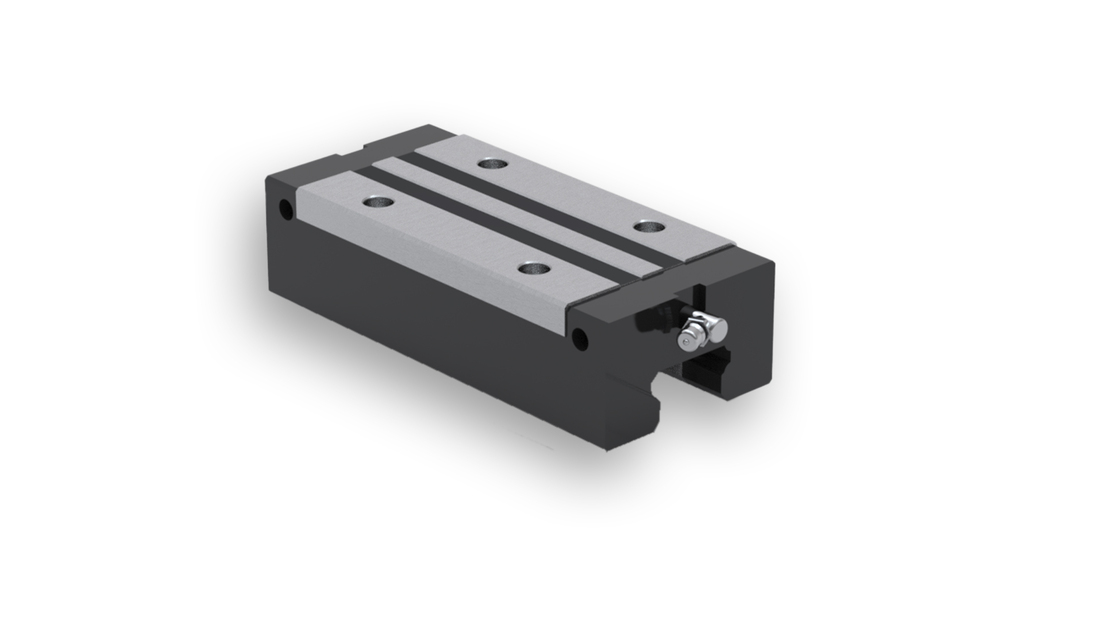

Slim, long, low height block without flange. Side nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (g) Weight Rail (g/m)
Get quote 1 17100 31700 210 290 290 113 156 156 260 1300
Get quote 1 27900 50000 470 560 560 262 312 312 520 2200
Get quote 1 36700 64400 690 840 840 393 479 479 820 3000
Get quote 1 36700 64400 690 840 840 393 479 479 850 3000
Get quote 1 51300 84700 1100 1300 1300 666 787 787 1370 4250
Get quote 1 71300 115300 1830 2120 2120 1132 1311 1311 2040 6020
Get quote 1 94800 150500 3210 3140 3140 2022 1978 1978 3690 9770
Get quote 2 147900 224500 5950 4780 4780 3920 3149 3149 5820 13720

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H W W1 W2 L1 H1 h2 S1 S2 D x d x g1 Hole Pitch (P) MxDP N1 N2 N3 P1 P2 E G P Length
Get quote 79.4 24 34 15 9.5 60.8 13 21 4.5 3.8 7.5 x 4.5 x 5.5 60 M4x4 M4x0.7 Ø 3.5 3.8 34 26 5.5 20 60 3000
Get quote 96.4 28 44 20 12 74.4 16.5 23.4 4.8 4 9.5 x 6 x 8.5 60 M5x5 M6x0.75 Ø 3.5 5 50 32 12 20 60 4000
Get quote 108 33 48 23 12.5 86 20 27.5 5.4 5.4 11 x 7 x 9 60 M6x6 M6x0.75 Ø 3.5 5 50 35 12 20 60 4000
Get quote 108 36 48 23 12.5 86 20 30.5 6 5 11 x 7 x 9 60 M6x6 M6x0.75 Ø 3.5 5.5 50 35 12 20 60 4000
Get quote 131.6 42 60 28 16 103.6 23 35 8.5 7.8 14 x 9 x 12 80 M8x8 M6x0.75 Ø 5.7 5 60 40 12 20 80 4000
Get quote 152.6 48 70 34 18 122.6 26 40.5 8 8 14 x 9 x 12 80 M8x8 M6x0.75 Ø 5.7 6 72 50 12 20 80 4000
Get quote 174 60 86 45 20.5 140 32 51 10.5 9.3 20 x 14 x 17 105 M10x10 PT1/8 Ø 5.7 6.5 80 60 13.5 22.5 105 4000
Get quote 211.8 70 100 53 23.5 170.4 38 58 12 12 23 x 16 x 20 120 M12x12 PT1/8 Ø 8.7 8 95 75 13 30 120 4000
