SBI FV

STOCK ITEM

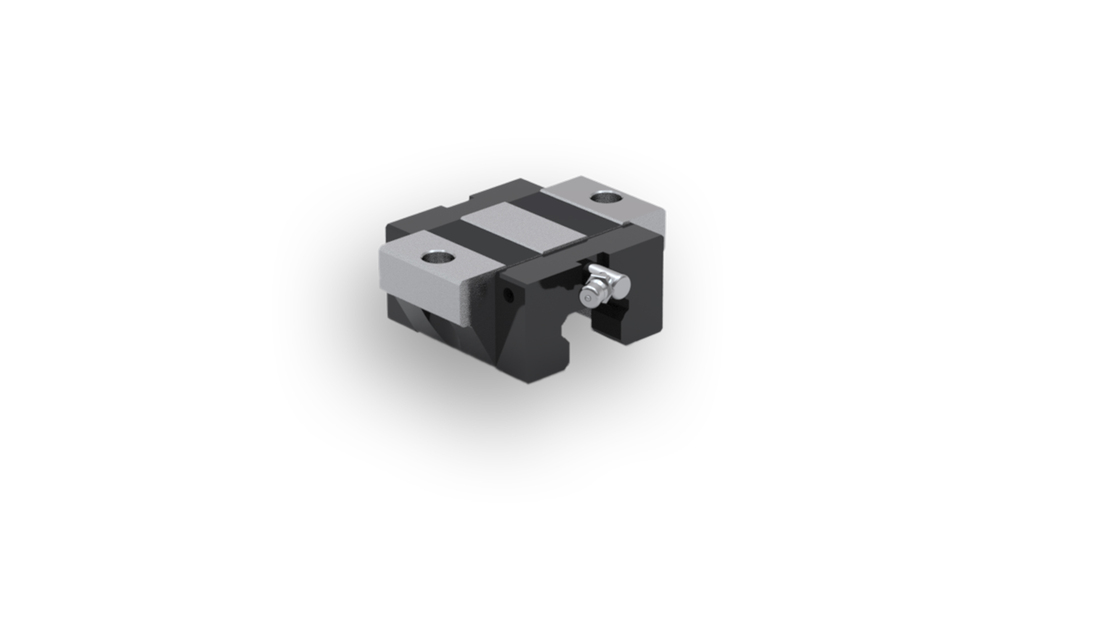

Super short block with flange, low height. Side nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.

Download PDF (all data) Generating PDF

+ Add to PDF catalogue

Configure CAD Download CAD

Designation	Get quote	Lead Time *	Dynamic Load Capacity C (N)	Static Load Capacity C0 (N)	Static Moment Mr0 (Nm)	Static Moment Mp0 (Nm)	Static Moment My0 (Nm)	Dynamic Moment Mr (Nm)	Dynamic Moment Mp (Nm)	Dynamic Moment My (Nm)	Weight Block (g)	Weight Rail (g/m)
SBI15FV	Get quote	1	5800	12800	40	30	30	18	14	14	100	1300
SBI20FV	Get quote	1	9400	20200	120	100	100	56	47	47	240	2200
SBI25FV	Get quote	1	12400	26100	190	170	170	90	81	81	370	3000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	Get quote	L	H	W	W1	W2	L1	H1	h2	S1	S2	D x d x g1	Hole Pitch (P)	N1	N2	N3	P2	E	G	M	P	S	T	Length
SBI15FV	Get quote	39.9	24	47	15	16	21.3	13	21	4.5	3.8	7.5 x 4.5 x 5.5	60	M4x0.7	Ø 3.5	3.4	38	5.5	20	M5	60	M4	8.8	3000
SBI20FV	Get quote	49.1	28	63	20	21.5	27.1	16.5	23.4	4.8	4	9.5 x 6 x 8.5	60	M6x0.75	Ø 3.5	5	53	12	20	M6	60	M5	8	4000
SBI25FV	Get quote	52.6	33	70	23	23.5	30.6	20	27.5	5.4	5.4	11 x 7 x 9	60	M6x0.75	Ø 3.5	5	57	12	20	M8	60	M6	9	4000
